Nano Diamond Solution Nanodiamond solution by 2Dsemiconductors USA Nanodiamond solution by 2Dsemiconductors USA

Nano Diamond Solution

SKU: SOL-DMD-IS
$410.00

Nanodiamond is a quantum material that measures only few nm to 100s of nm in size and has the diamond structure. It is much investigated in the field owing to their potential applications in biological, electronic, and quantum technologies. In particular, nitrogen-vacancy center (N-V center) is one of most celebrated point defects in nanodiamond. When N-V centers are successfully introduced, it produces coherent photoluminescence which can be easily detected from an individual N-V center, especially those in the negative charge state (NV-) (see our figures).

Nano diamond solution method.  At 2Dsemiconductors we have developed a synthesis technique considering these attractive properties of NV nanodiamond. Our nanodiamond is produced using liquid phase pulse laser ablation. In this process, high density pulsed laser beam (Nb-YAG laser) is focused onto the surface of highly oriented pyrolic graphite (HOPG) which is placed in a liquid (cyclo-hexane or water). The HOPG target is produced at our facilities at highest 6N purity but post-implanted by nitrogen to maximize NV center creation rates. Laser pulses vaporize HOPG in short duration time and form an ablation plume. These vaporized atoms / graphitic complexes interact with each other in a way that they form nano-diamond nanoparticles with highest purity. Next nano-diamond is separated from other bi-products and suspended in water or ethanol (suggested) solution.

The properties of nanodiamond

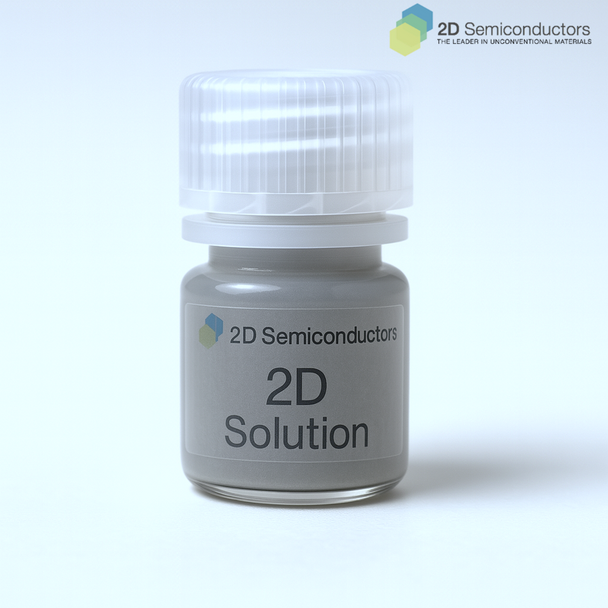

Sample size Shipped in 4mL super dense solution
Band gap 5.7 eV (but emission comes from NV0 and NV-)
Emission lines NV0 ~575 nm and NV- ~ 637 nm
Crystal structure Diamond
Synthesis technique Liquid phase pulse laser ablation
Characterization methods PL, SEM,EDS

Scanning electron microscopy images collected from nanodiamond


Photoluminescence spectrum collected from nanodiamond


Full Description
Solution Type *
Qty
  • Description

    Nano Diamond Solution

    Nanodiamond is a quantum material that measures only few nm to 100s of nm in size and has the diamond structure. It is much investigated in the field owing to their potential applications in biological, electronic, and quantum technologies. In particular, nitrogen-vacancy center (N-V center) is one of most celebrated point defects in nanodiamond. When N-V centers are successfully introduced, it produces coherent photoluminescence which can be easily detected from an individual N-V center, especially those in the negative charge state (NV-) (see our figures).

    Nano diamond solution method.  At 2Dsemiconductors we have developed a synthesis technique considering these attractive properties of NV nanodiamond. Our nanodiamond is produced using liquid phase pulse laser ablation. In this process, high density pulsed laser beam (Nb-YAG laser) is focused onto the surface of highly oriented pyrolic graphite (HOPG) which is placed in a liquid (cyclo-hexane or water). The HOPG target is produced at our facilities at highest 6N purity but post-implanted by nitrogen to maximize NV center creation rates. Laser pulses vaporize HOPG in short duration time and form an ablation plume. These vaporized atoms / graphitic complexes interact with each other in a way that they form nano-diamond nanoparticles with highest purity. Next nano-diamond is separated from other bi-products and suspended in water or ethanol (suggested) solution.

    The properties of nanodiamond

    Sample size Shipped in 4mL super dense solution
    Band gap 5.7 eV (but emission comes from NV0 and NV-)
    Emission lines NV0 ~575 nm and NV- ~ 637 nm
    Crystal structure Diamond
    Synthesis technique Liquid phase pulse laser ablation
    Characterization methods PL, SEM,EDS

    Scanning electron microscopy images collected from nanodiamond


    Photoluminescence spectrum collected from nanodiamond
